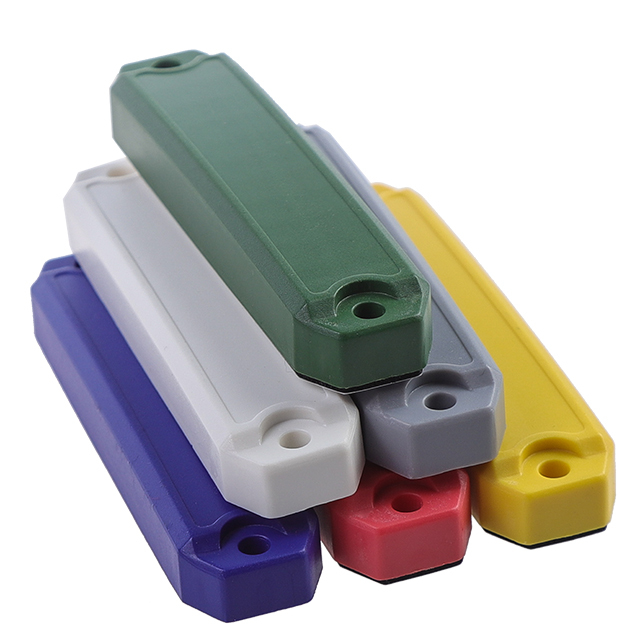

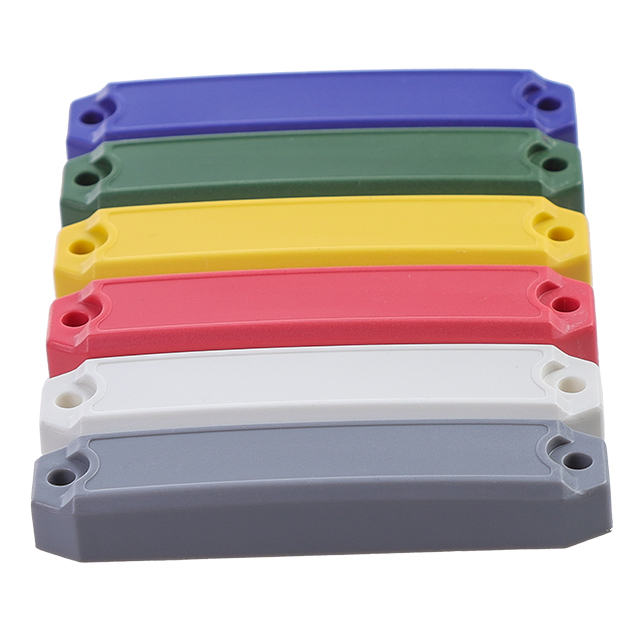

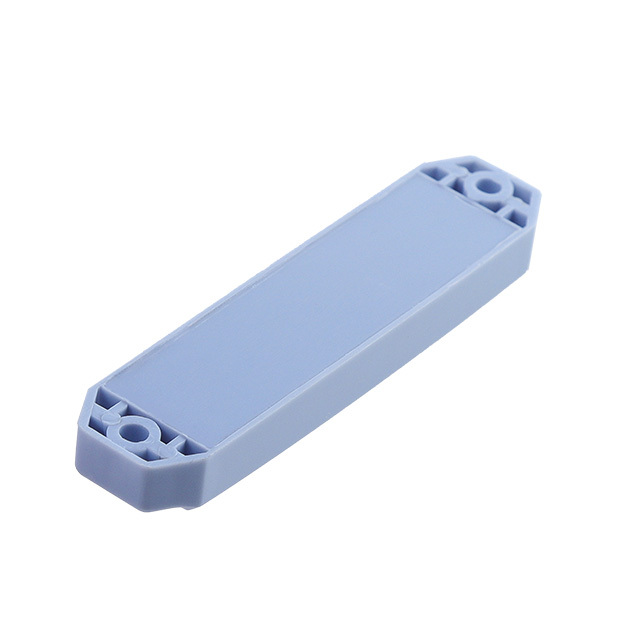

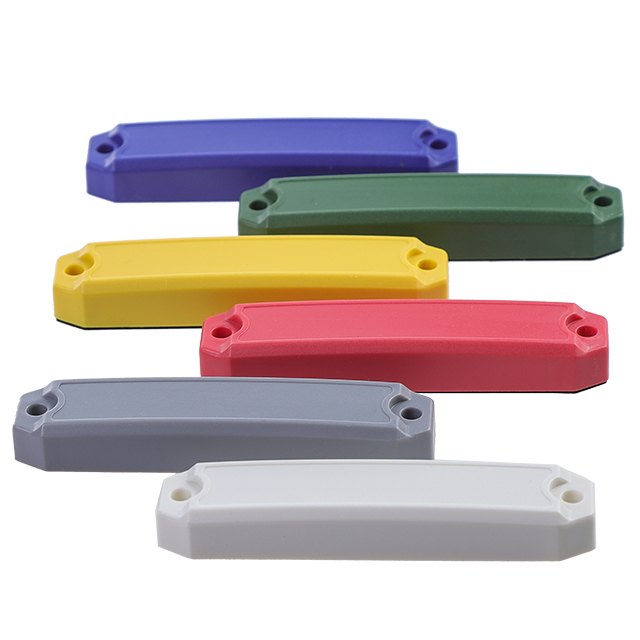

128bits EPC UHF RFID plastic hard tag with US frequency or EU frequency for container tracking

This is a popular UHF RFID Tag used on metal surfaces.

It is a stable and reliable UHF RFID on metal tag, which is widely used in indoor and outdoor asset management, the quality of this module is superior to similar products of the same size.

         Be of good RF performance, work stably on metal surface.

        100% memory writing tested.

        Both material and design have been tested for reliability.

        100% function tested by Voyantic Tagformace.



  • 128bits EPC UHF RFID plastic hard tag with US frequency or EU frequency for container tracking
  • 128bits EPC UHF RFID plastic hard tag with US frequency or EU frequency for container tracking
  • 128bits EPC UHF RFID plastic hard tag with US frequency or EU frequency for container tracking
  • 128bits EPC UHF RFID plastic hard tag with US frequency or EU frequency for container tracking

Product Parameter

MAIN FEATURES of UHF RFID Plastic On-Metal Tag:



         Can customize size for customers.
         Flexible and convenient installation.
         Painted ones can be used in outdoor.
         Logo can be printed on the surface of painted tag.
        Can be lasered with barcode and serial number.





APPLICATIONS:



         Storage management.

         IT equipment management.

         Metal containers management.

         Metal equipment management.

         Personnel patrol management.

         Fixed asset management.


CHARACTERISTICS:

Compliance

EPC Class1 Gen2; ISO18000-6C

Frequency

902-928MHz , 865~868MHz (Can customize frequency)

Chip

Impinj M4QT (Or Impinj R6 chip )

Memory

EPC 128bits User 496bits

Read/write

Yes (EPC and User)

Data Storage

50 years

Warranty

One year

Material

FR4

Dimension

85mm L x 20mm W x 11mm H (3.346in x 0.787 in x 0.443in)

Storage Temperature

-25℃~ +70 ℃

Operating Temperature

-25℃~ +70 ℃

Storage humidity

5%~95%

Delivery format

Single

Installation Method

Screw, rivet, glue, or 3M300LSE tape

Weight

~ 10g

Package

Bubble bag and carton

Color

Grey

Power Supply

Passive

Drop Test

1 meters high, 200 drop test passed

Alcohol test

95% alcohol test passed

Gasoline test

Passed

High & low temperature shock test

-40   ℃ ~ +70℃, 7 cycles, total 48 hours

Temperature cycle test

-40℃~+70, 7 times cycle time testing, 48 hours total

RoHS

Compatible

Read distance on metal surface

Up to 6 meters (EIRP=4W)

Up to 4 meters ( With ATID AT880 handheld reader)

RF performance consistency  test

100% tested by Voyantic Tagformace

Options

pre-encoding, Barcode laser, logo
