Passive data carrier: The data and the required power are inductively coupled by HF RFID reader.
All data carriers have a unique ID number; this number is read-only and cannot be modified
Can be used all over the world thanks to ISO 15693 conformity
EEPROM data carrier, up to 992 byte memory
FRAM data carrier with up to 2000 Byte for almost unlimited feed cycles
Attachment by adhesion or screws
High level of protection up to IP68/69K.

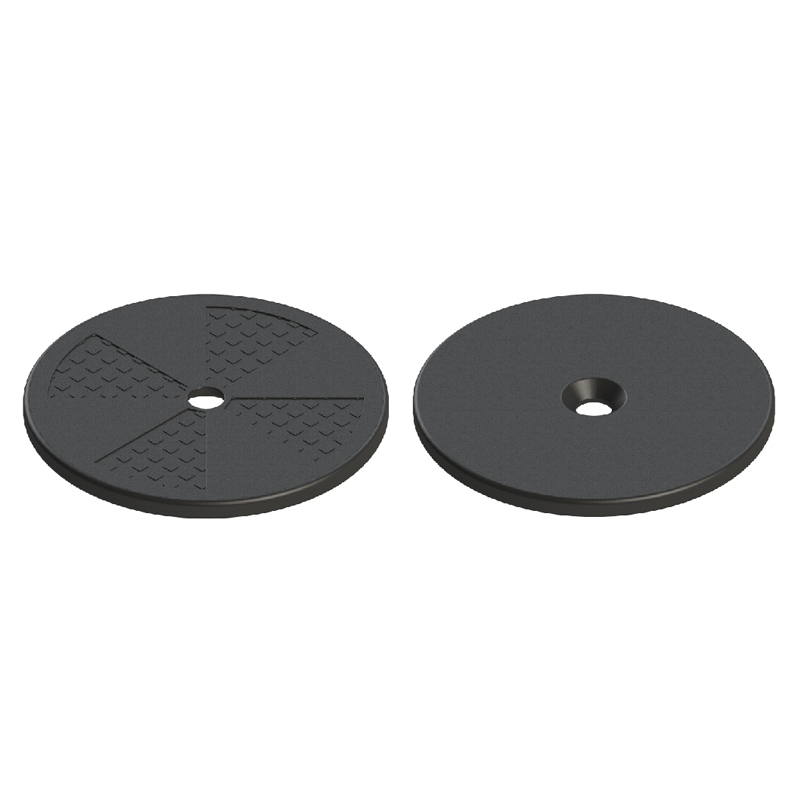

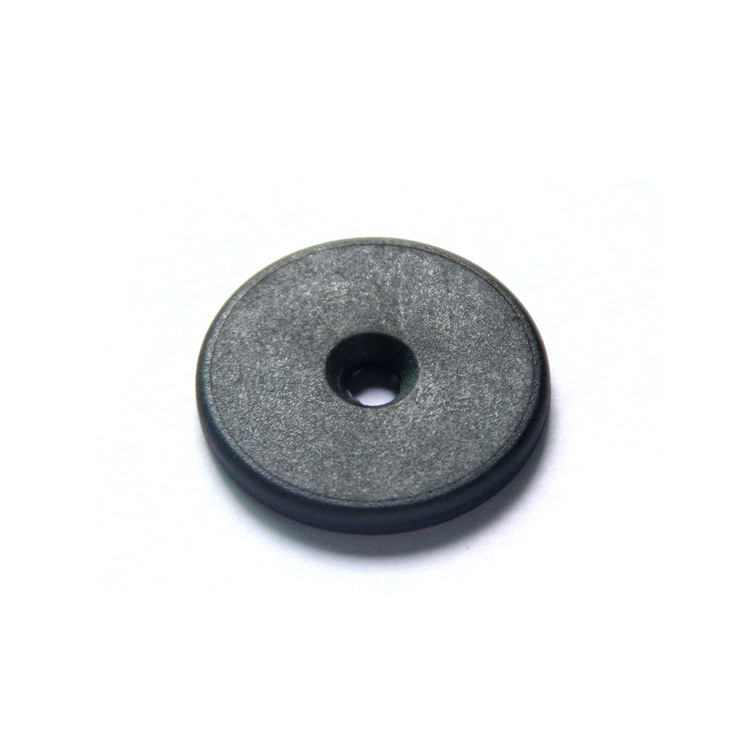

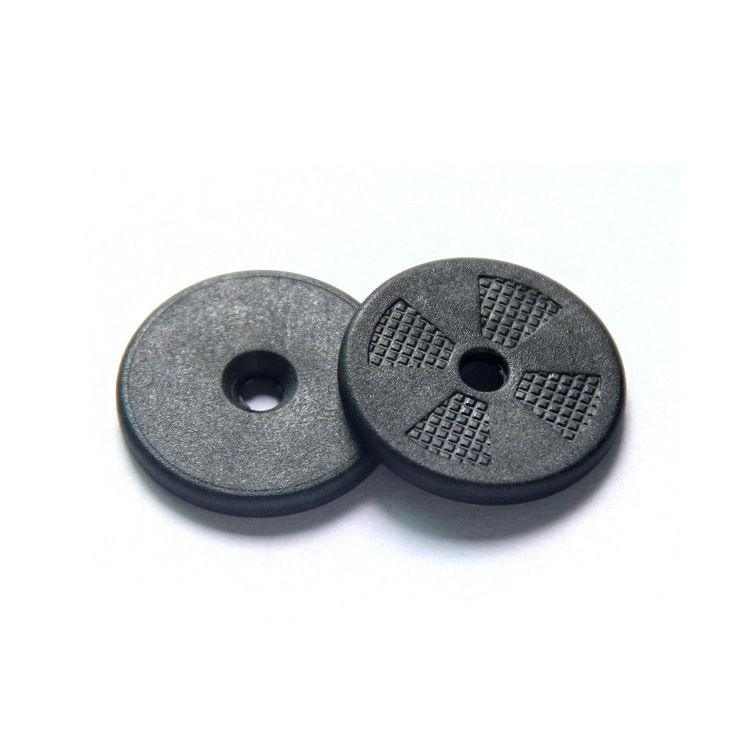

Name: RFID Transponder
Material: PPS
Main features:

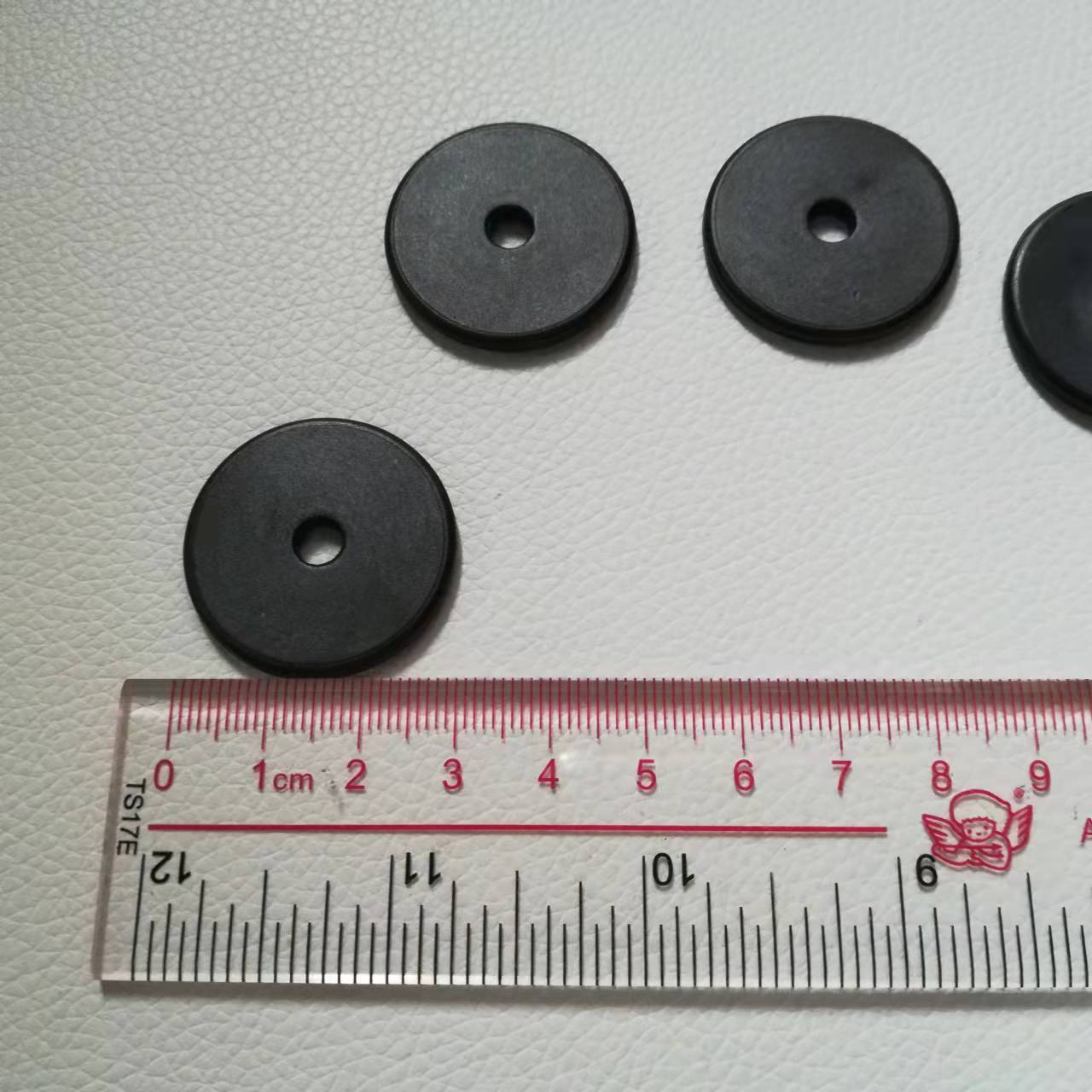

Specification Size Available:
15mm X 3mm
20mm X 3mm
24mm X 3mm
25mm X 3mm
30mm X 3mm
50mm X 3.5mm
35mm X 3mm
Color: black
Protocol and frequency:
ISO 15693~13.56MHz
ISO 14443A~13.56MHz
Weight: 4g
Working temperature: -25-75℃
Application areas: identification anti-counterfeiting, logistics tracking, biometric identification, industrial automation, location patrol, laundry, unique identification of automobile engines, identification of chemical raw materials, underground pipelines, and areas that need to be used in harsh environments such as high temperature wear resistance and corrosion resistance.
