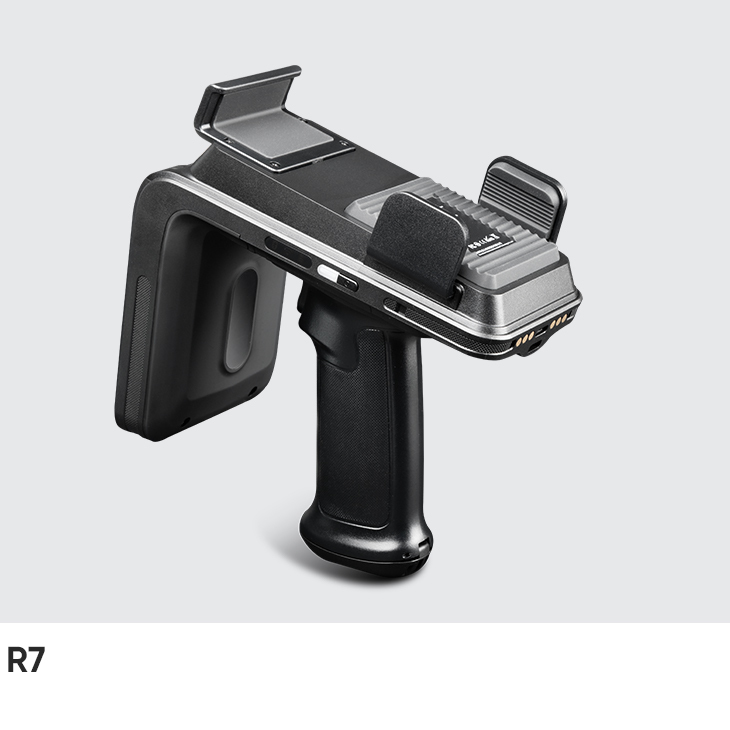

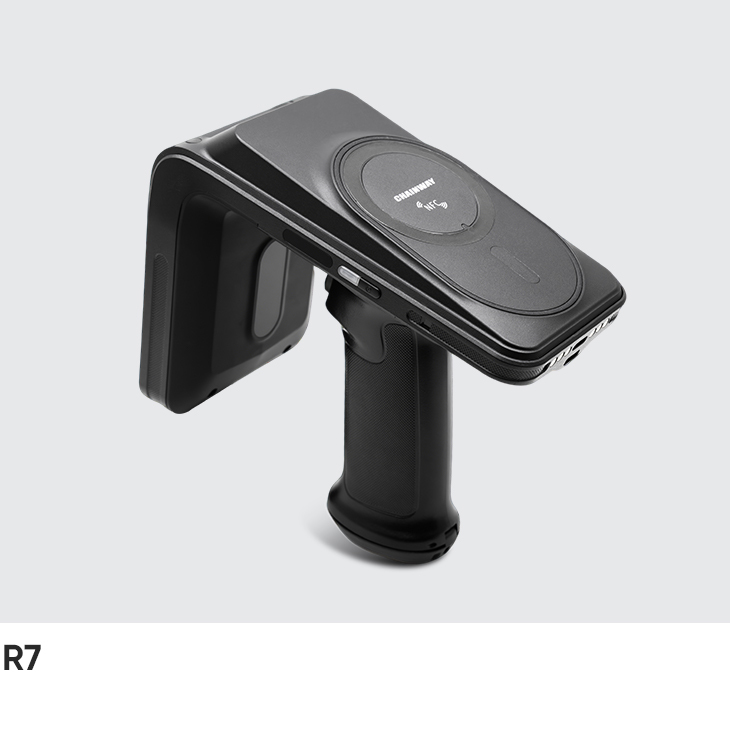

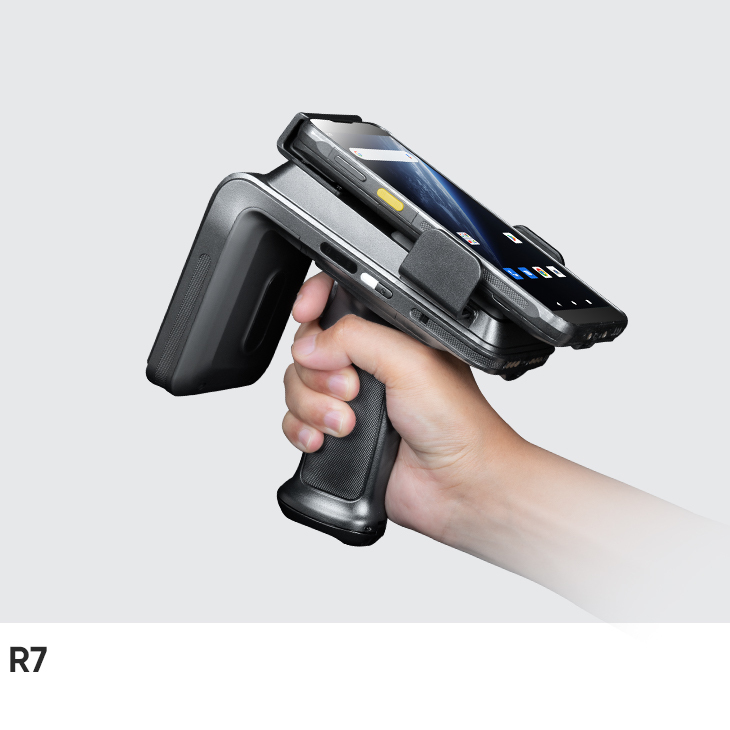

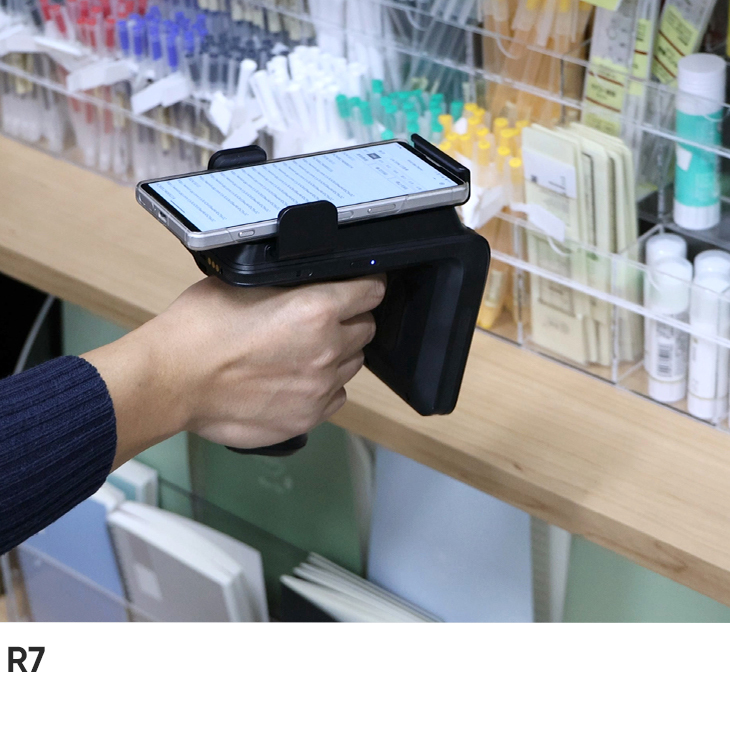

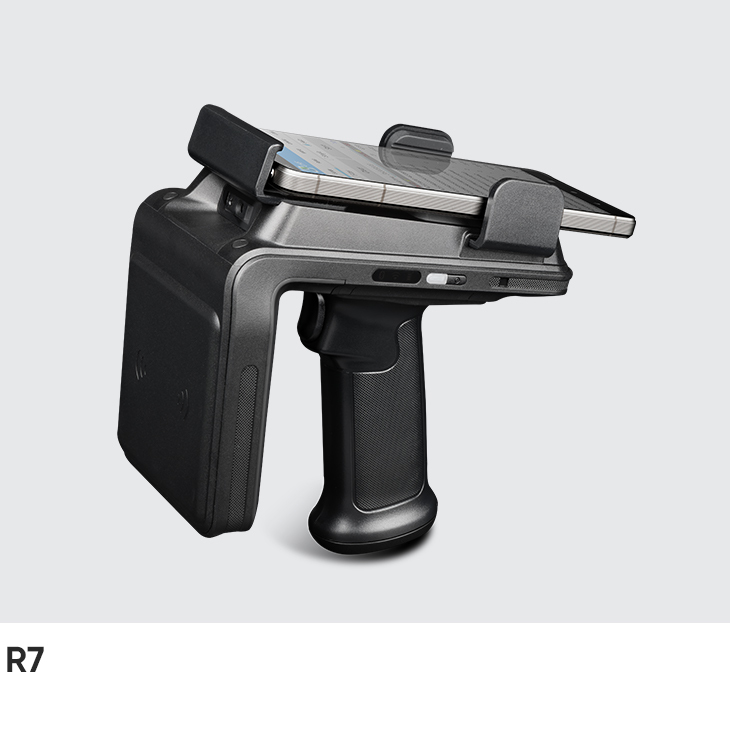

Chainway R7 UHF RFID Sled Reader with bluetooth, type C USB and WIFI and Impinj E710

Physical Characteristics

Dimensions

Clip-on version: 157.01 mm × 85.22 mm × 162.41 mm
(6.18 × 3.35 × 6.39 in)
Basic/Magnetic version: 157.01 mm × 85.22 mm × 146.42 mm
(6.18 × 3.35 × 5.76 in)

Weight

Basic version: 578 g (20.39 oz)
Magnetic version: 590 g (20.81 oz)
Clip-on version: 642 g (22.65 oz)

Battery

6700 mAh removable battery
Built-in NTC temperature sensor and battery meter

Material

PC + GF,die-cast aluminum

Interfaces

USB 2.0 Type-C
Bottom 6-pin pogo-pin charging dock interface

Audio

Buzzer × 1

Button

Power button × 1
Scan button × 1
Mode button × 1 (RFID / barcode mode switch)

Indicator LED

Battery status indicator × 1
Mode indicator × 1
Operating status indicator × 1
Bluetooth indicator × 1
Wi-Fi indicator × 1

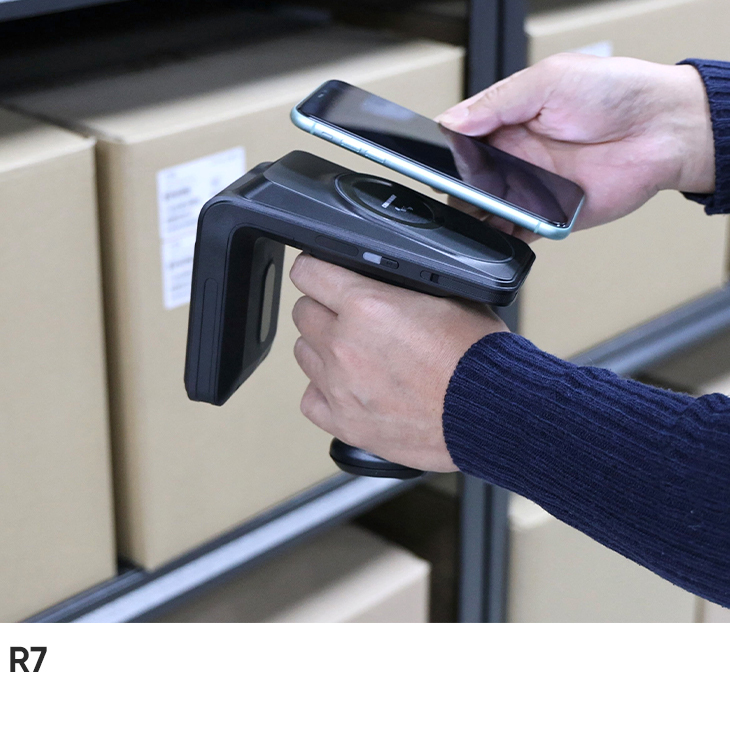

NFC Pairing

Supported

Communication

WLAN

Support IEEE 802.11 a/b/g/n/ac/ax, 2.4G/5G dual-band
* This function is optional

Bluetooth

Bluetooth 5.0

Developing Environment

SDK

Supports Android, iOS, and Windows

User Environment

Operating Temp.

–20°C to 50°C (–4°F to 122°F)

Storage Temp.

–40°C to 70°C (–40°F to 158°F)

Charging Temp.

0°C to 45°C (32°F to 113°F)

Humidity

5%–95% RH, non-condensing

Drop Specification

Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range

Tumble Specification

1000 x 0.5 m / 1.64 ft. falls at room temperature

Sealing

IP54 per IEC sealing specifications

ESD

±15 KV air discharge, ±8 KV conductive discharge

Barcode Scanning

Scan engine

SE4107; NLS-N1; NLS-EM3596

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.

Note

* This function is optional

UHF RFID

Engine

Based on the Impinj E-series chipset

Frequency

FCC: 902–928 MHz, 36 dBm
EU1: 865–867.6 MHz, 35 dBm
EU2: 915–921 MHz, 36 dBm (EIRP)
China: 920.5–924.5 MHz, 35 dBm

Impinj Gen2X

Supported

Protocol

EPCglobal Class 1 Gen 2 / ISO 18000-63

Antenna

Circularly polarized antenna

Output Power

1–30, adjustable in 1 dB steps

Fastest Read Rate

1300 tags/s

Max Read Range

Up to 30 m (with Impinj M830 tags)

Note

* Read rates tested in low-interference lab; distances measured outdoors in open. Actual results may vary with environment and tags.
