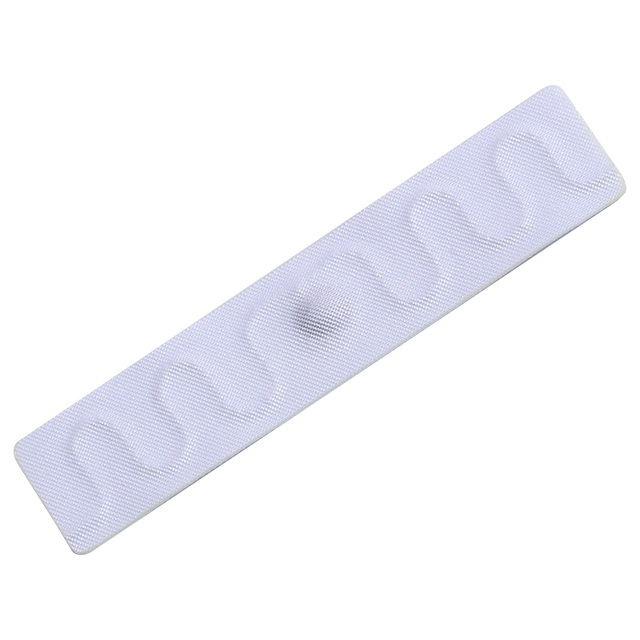

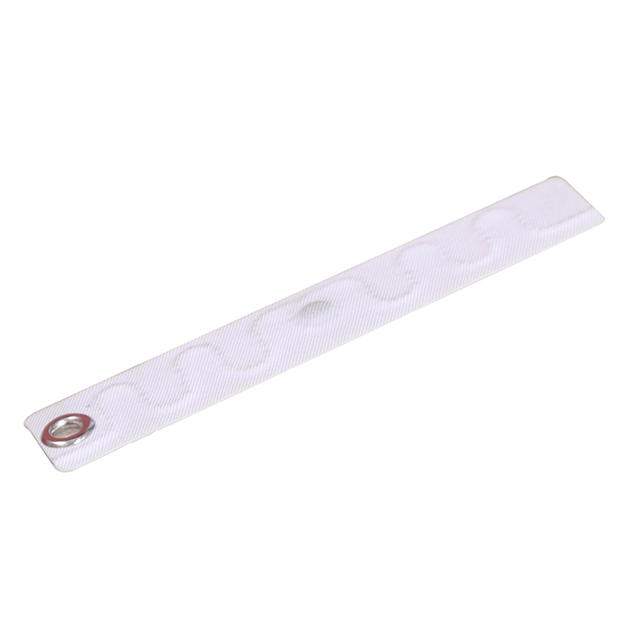

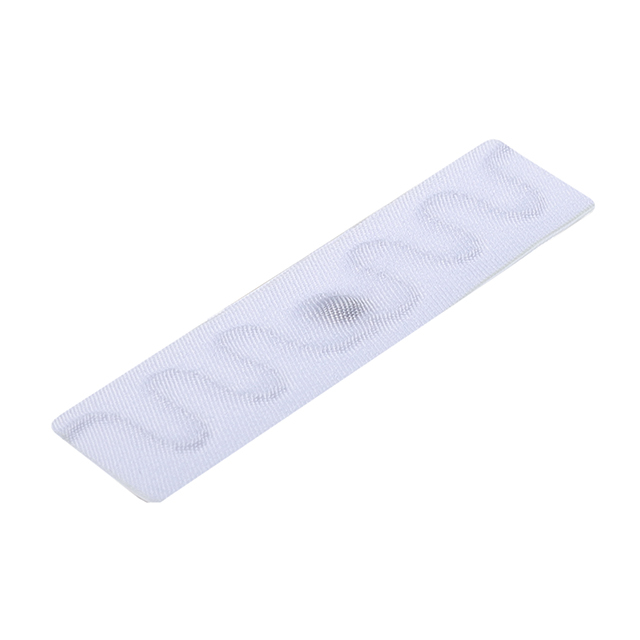

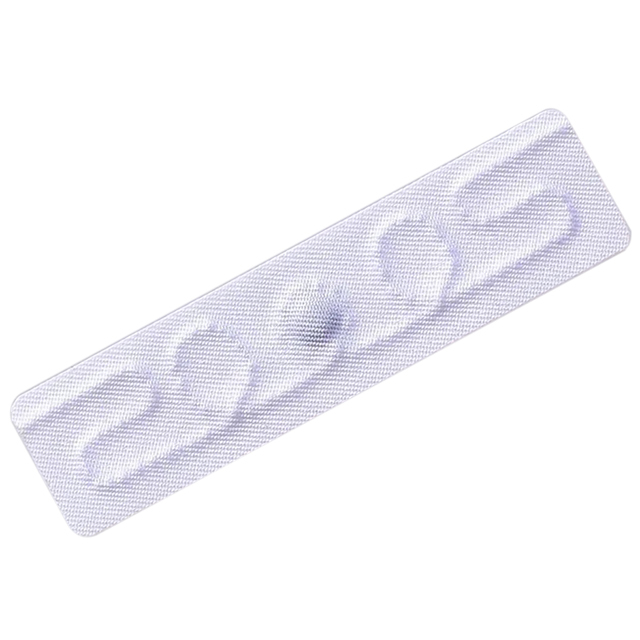

This is UHF RFID Textile Laundry Tag, with more than 200 industrial washing cycle times, capable of 60 bar pressure, stable and reliable RF performance.Assembly method: sewing (Thread installation).
It is widely used in uniform, hospital bedsheet, doctor clothes, school student clothes laundry.
ADVANTAGES:
More than 200 wash cycles.
Both material and design have been tested for reliability.
100% function tested.
MAIN FEATURES:
Can customize size for customers.
Soft material.
Smaller module inside the tag.
Can stick under 60 bar pressure.
APPLICATIONS:
Industrial washing.
Management of uniforms.
Medical apparel management.
Military clothing management.
Personnel patrol management.
CHARACTERISTICS：
|
Compliance |
EPC Class1 Gen2, ISO18000-6C |
|
Frequency |
865~868MHz, or 902~928MHz |
|
Chip |
Impinj R6P |
|
Memory |
EPC 96bits,User 32bits |
|
Read/write |
Yes |
|
Data Storage |
20 years |
|
Lifetime |
200 wash cycles or 2 years from shipping date (whichever comes first) |
|
Material |
Textile |
|
Dimension |
LxWxH: 70 x 17 x 1.5mm / 2.756 x 0.677 x 0.059 inch |
|
Storage Temperature |
-40℃~ +85 ℃ |
|
Operating Temperature |
1) Washing: 90℃(194οF), 15 minutes, 200 cysle 2) Pre-drying in Tumbler: 180℃(320οF), 30minutes 3) Ironer: 180℃(356οF), 10 seconds, 200 cycles 4) Sterilization Process: 135℃(275οF), 20 minutes |
|
Mechanical Resistance |
Up to 60 bars |
|
Delivery format |
Single |
|
Installation Method |
Thread installation |
|
Weight |
~ 0.6g |
|
Package |
Antistatic bag and carton |
|
Color |
White |
|
Power Supply |
Passive |
|
Chemicals |
Normal common chemicals in the washing processes |
|
RoHS |
Compatible |
|
Read distance |
Up to 5.5 meters (ERP=2W) Up to 2 meters ( With ATID AT880 handheld reader) |
|
Polarization |
Liner |
* During sewing installation, the stitching should not damage the metal wire and chip module.
* Different reading performance with different reading facilities.
* Hot installation, when the temperature is lower than 210℃ or the pressure is less than 0.6 Mpa, there will be a hidden trouble of bad hot stamping effect.
